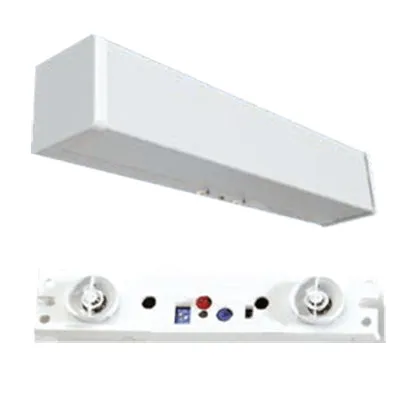

Advantage Environmental Lighting MSWV13 LED Stairwell With Sensor

The MSWV13 Series is a LED Stairwell with Sensor fixture. It is available with multiple lens and finish options, utilizing the occupancy sensor to sense motion within a space. It will automatically turn on lights even when the sensor has no direct line of sight to occupants. After the area becomes unpopulated and the time delay has passed, the sensors automatically turn the lights off. Ultrasonic detection operates by transmitting sound waves throughout an area and measuring the speed at which they return. Movement increases the return frequency, which triggers occupancy.

APPLICATIONS

The MSWV13 Series of LED Stairwell with Sensor fixtures were designed to be high quality, energy efficient LED fixtures for use in hallways and corridors, stairwells, closets, and bathrooms.

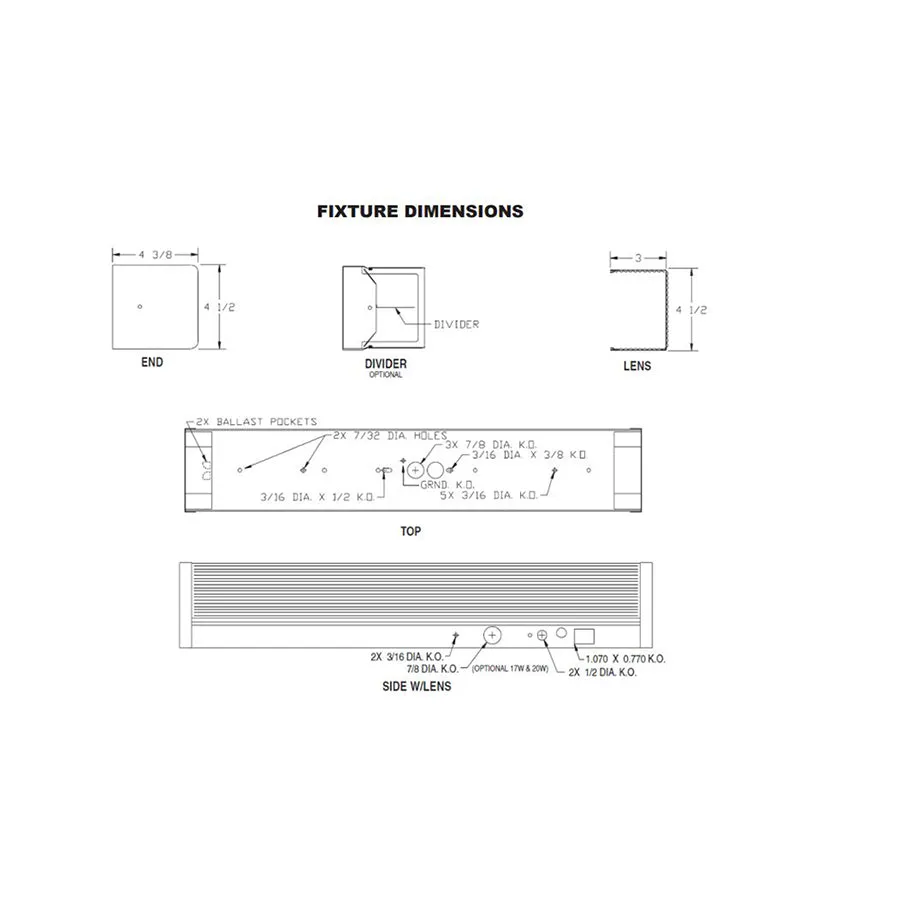

CONSTRUCTION

This fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. Optional 20 gauge body and one-piece end. Baffles and dividers are available for up, down, and/or front light. Ends with tapped holes to accommodate tamper-proof or regular screws. Wiring knockouts are provided on back of housing. End cap held in place with acorn nut.

OPTICAL SYSTEM

White pre-painted polyester polymer finish with a high reflectivity. The clear ribbed lens is fully captured by the end plate.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. The fixture is compatible with 0-10V dimming controls.

MOUNTING

Units are designed for surface mounting on either a wall or ceiling. LISTINGS UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.
